VA10 non metallic

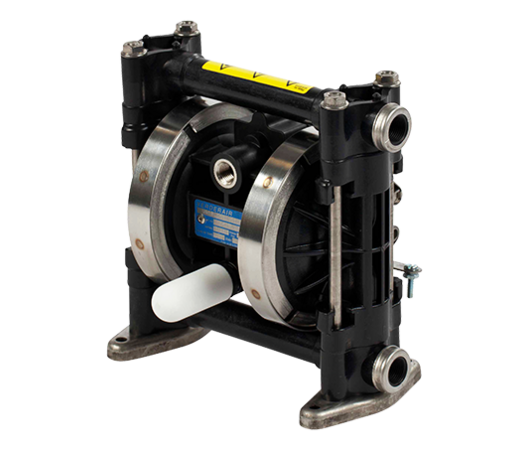

The Verderair VA10 non-metallic pump is a compact, air operated double diaphragm (AODD) pump suitable for small transfer/drum emptying or as a basic dosing pump.
-
Svojstva
Tehničke karakteristike Max. protok 25 l/min Max. (izlazni) pritisak 7 bar Air conn. 1/4" BSP/NPT Liquid conn. 3/8" BSP/NPT Maximum suction lift (dry) 3.7 mVS Sertifikati ATEX Maximum suction lift (wet) 6.4 mVS Max. veličina čvrste materije 1.6 mm Viskozitet 1000 mPa.s Max. temperatura 65 °C Materials liquids parts Polypropylene. Acetal Materials valves seats Acetal. Polypropylene. Stainless Steel Materials valve balls PTFE. Hytrel. Stainless Steel. Buna-N Materials diaphragms PTFE. Hytrel. Buna-N. Santoprene Material center section Polypropylene -
Opis
The Verderair VA10 non-metallic pump is a compact, air operated double diaphragm (AODD) pump suitable for small transfer/drum emptying or as a basic dosing pump.
